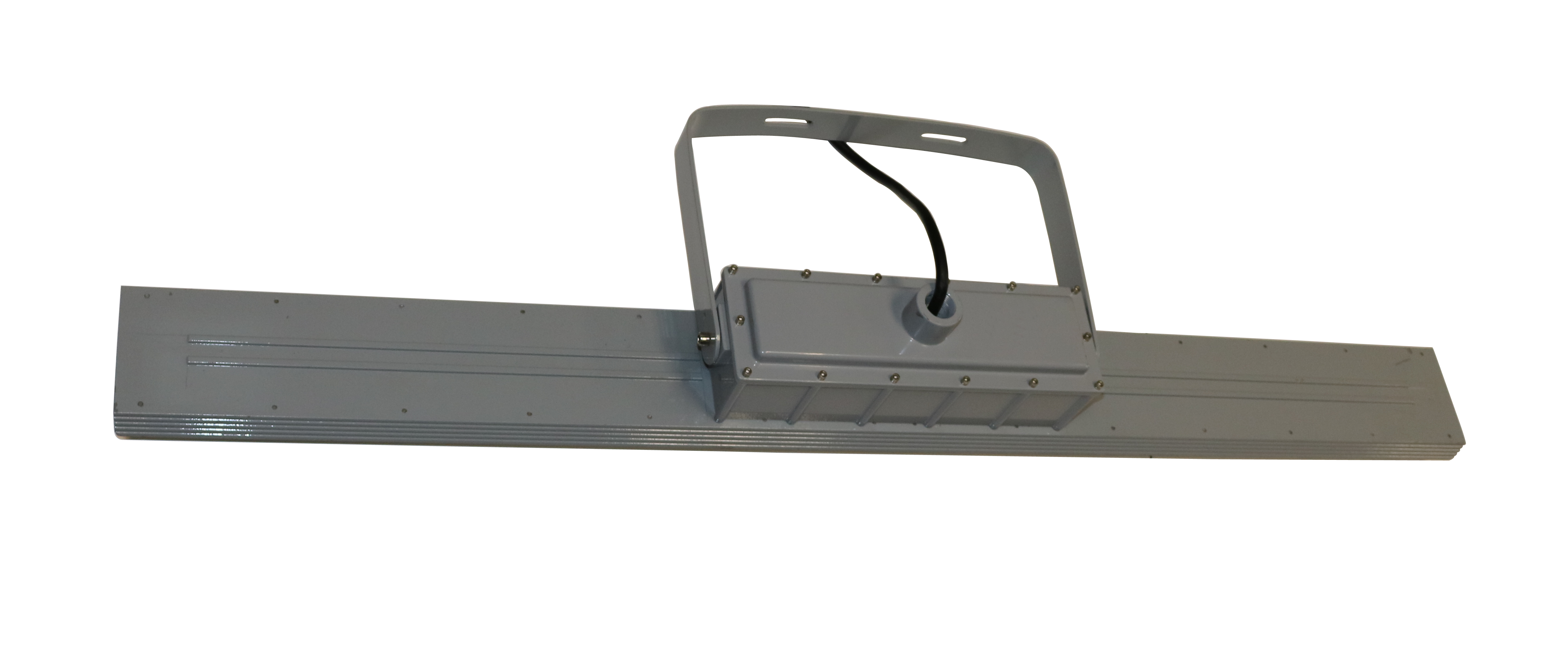

HLL-VL Series

HCO v2 Series
October 20, 2020
HLX-EV Series
October 20, 2020
HLX-EV Series
October 20, 2020
HCO v2 Series
October 20, 2020

Features

  • UL844 C1D2 classified linear luminaire.
  • Nema 4X/IP66 sealed for humid and wet environments.
  • ABS compliant under PDA provisions.
  • Suitable for marine and highly corrosive applications.
  • Impact resistant polycarbonate lens (clear or diffused).
  • Low copper cast ADC12 aluminum housing.
  • Captive 316 grade stainless steel hardware.
  • Corrosion resistant proprietary powder coat finish.
  • Up to 140lm/w efficacy.
  • Industry standard 2-foot and 4-foot packages.
  • Available in 10, 20, 40, 50, and 60W power configurations.
  • Up to 7,900lm output.
  • Integrated digital drivers with 4-way protection (120-277VAC or 347-480VAC).
